Grommets, blind, with PG membrane, made of PVC
Material
PVC
Temperature
-30 to 70°C
Colour
Black Grey
Resistance to ageing
Very good
Resistance to organic solvents
Good
Resistance to oils
Mediocre
Resistance to ozone
Good
Resistance to fuels
Mediocre
Standard grommets
(Notched) membrane

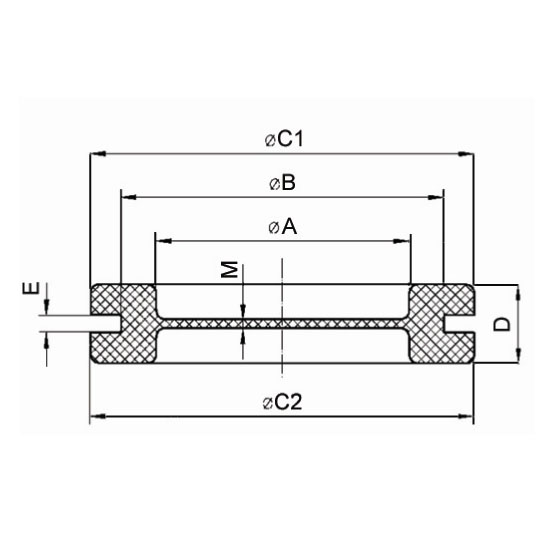

| Partnumber | Panel hole | Panel thickness | A | C | C2 | D | M |
|---|---|---|---|---|---|---|---|
| mm | mm | mm | |||||
| 14412051 | 59 | 2.5 | 46.5 | 66.2 | 66.2 | 10.5 | 1.6 |
| 14412047 | 28 | 2 | 21 | 34.5 | 34.5 | 8 | 1 |
| 14412048 | 36.5 | 2.2 | 29 | 43 | 43 | 9.5 | 1.5 |
| 14412012 | 18 | 2 | 11 | 22.5 | 21.5 | 7 | 1 |
| 14412039 | 22 | 2 | 16 | 27.5 | 26 | 7.4 | 1 |
| 14412049 | 46 | 2.5 | 35 | 52.5 | 52.5 | 10 | 1.3 |
| 14412020 | 20 | 2 | 13.5 | 24 | 24 | 7 | 1 |
| 14412004 | 15 | 2 | 9 | 20 | 18 | 7 | 1 |
