Grommets R, radiused edges

Grommets, cable entry, radiused edges, made of PVC

Material

PVC 9542

Temperature

-30 to 70°C

Colour

Black

Resistance to ageing

Very good

Resistance to organic solvents

Good

Resistance to oils

Mediocre

Resistance to ozone

Good

Resistance to fuels

Mediocre

Standard grommets

Cable entry, standard line

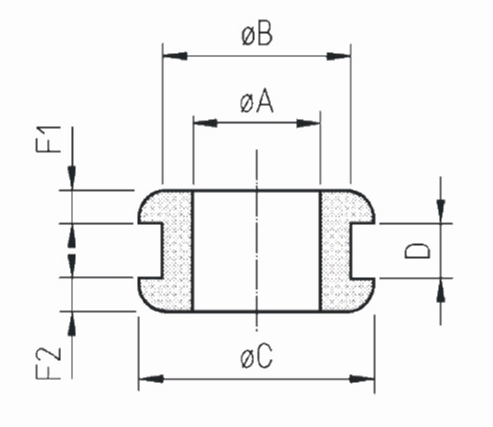

Partnumber	Panel hole	Panel thickness	A	C	F1	F2
	mm	mm		mm	mm	mm
14411558	8	2	5	11	1.5	1.5
14411615	12	1.5	8	16	2	2
14411655	14	1.5	10	18	2	2
14411569	10	1	6	14	2	2
14411525	7	2	4	10	1.5	1.5
14411644	14	1	10	18	2	2
14411536	8	1	5	11	1.5	1.5
14411503	7	1	4	10	1.5	1.5
14411677	14	3	10	18	2	2
14411637	12	3	8	16	2	2
14411666	14	2	10	18	2	2
14411514	7	1.5	4	10	1.5	1.5
14411571	10	1.5	6	14	2	2
14411582	10	2	6	14	2	2
14411593	10	3	6	14	2	2
14411547	8	1.5	5	11	1.5	1.5
14411626	12	2	8	16	2	2
14411604	12	1	8	16	2	2

We would be delighted to assemble these products for you.
