Grommets, cable entry, round edges, made of polychloroprene
Material
Polychloroprene
Temperature
-30 to 90°C
Colour
Black
Resistance to ageing
Very good
Resistance to organic solvents
Reasonably good
Resistance to oils
Reasonably good
Resistance to ozone
Good
Resistance to fuels
Reasonably good
Standard grommets
Cable entry, standard line

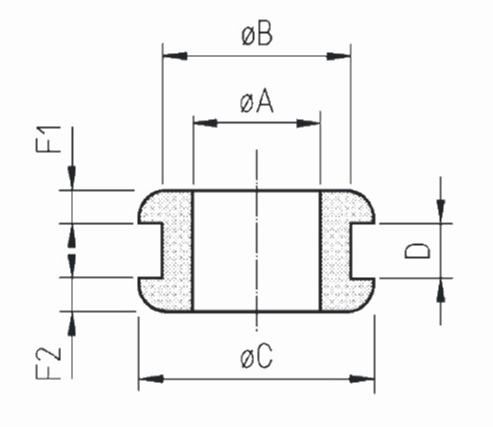

| Partnumber | Cable diameter (A) | Panel hole (B) | Panel thickness (D) | C | F1 | F2 |
|---|---|---|---|---|---|---|
| mm | mm | mm | ||||
| 14400260 | 5 | 7 | 2 | 11 | 2.75 | 2.75 |
| 14400189 | 4.5 | 9.5 | 2 | 14 | 4.5 | 4.5 |
| 14400999 | 11 | 15 | 2.5 | 19 | 3 | 3 |
| 14400472 | 6 | 11 | 2 | 16 | 1.75 | 1.75 |
| 14401100 | 12 | 20 | 3 | 25 | 2.5 | 2.5 |
| 14400529 | 6 | 12 | 3 | 16 | 1.75 | 1.75 |
| 14400928 | 9.5 | 13 | 8 | 17.5 | 3 | 3 |
| 14401290 | 15 | 22 | 3 | 26 | 4.5 | 4.5 |
| 14400170 | 4.5 | 9.5 | 1.5 | 14 | 4.5 | 4.5 |
| 14401347 | 16 | 22 | 3 | 29.5 | 4 | 4 |
| 14400448 | 6 | 10 | 3 | 14 | 3 | 3 |
| 14400740 | 9 | 11 | 1.5 | 16 | 2.75 | 2.75 |
| 14400600 | 7.5 | 12 | 3 | 20 | 3.5 | 3.5 |
| 14401315 | 16 | 22 | 1 | 29.5 | 4 | 4 |
| 14401231 | 14 | 20 | 2 | 28 | 4 | 4 |
| 14400723 | 8 | 16 | 6 | 20 | 3 | 3 |
| 14400934 | 10 | 14 | 3 | 20 | 3 | 3 |
| 14400030 | 2 | 6.5 | 2 | 11 | 2 | 2 |
| 14400243 | 5 | 7 | 1 | 11 | 2.75 | 2.75 |
| 14400596 | 7.5 | 12 | 2 | 20 | 3.5 | 3.5 |
| 14400901 | 9.5 | 13 | 4 | 17.5 | 3 | 3 |
| 14401274 | 15 | 22 | 1.5 | 26 | 4.5 | 4.5 |
| 14400485 | 6 | 11 | 5 | 14 | 3 | 3 |
| 14400332 | 5.5 | 8 | 1.5 | 11 | 2 | 2 |
| 14400930 | 10 | 14 | 1 | 20 | 3 | 3 |
| 14400588 | 7.5 | 12 | 1.5 | 20 | 3.5 | 3.5 |
| 14401010 | 11 | 15 | 3 | 19 | 3 | 3 |
| 14401428 | 25 | 47 | 1.5 | 56.5 | 4.5 | 4.5 |
| 14401426 | 23 | 30 | 6 | 38 | 3.5 | 3.5 |
| 14400057 | 2 | 8 | 1.5 | 11 | 2 | 2 |
| 14401455 | 48 | 60 | 3 | 68 | 3.75 | 3.75 |
| 14401070 | 12 | 20 | 1 | 25 | 2.5 | 2.5 |
| 14401185 | 13 | 17 | 4 | 23 | 4 | 4 |
| 14400125 | 4 | 6.5 | 1 | 11 | 2 | 2 |
| 14400952 | 11 | 14 | 2 | 19 | 3 | 3 |
| 14400090 | 3 | 7 | 1.5 | 10 | 1.5 | 3 |
| 14400545 | 7 | 12 | 1.5 | 16 | 3.25 | 3.25 |
| 14400022 | 2 | 6.5 | 1.5 | 11 | 2 | 2 |
| 14400565 | 7.5 | 11 | 5 | 20 | 3.5 | 3.5 |
| 14400707 | 8 | 11 | 3 | 15 | 3.5 | 3.5 |
| 14401061 | 12 | 18 | 4 | 25 | 2.5 | 2.5 |
| 14400413 | 6 | 10 | 1 | 14 | 3 | 3 |
| 14401990 | 48 | 60 | 6 | 68 | 3.75 | 3.75 |
| 14400935 | 10 | 16 | 1.5 | 20 | 3 | 3 |
| 14400561 | 7 | 12 | 3 | 16 | 3.25 | 3.25 |
| 14401223 | 14 | 20 | 1.5 | 28 | 4 | 4 |
| 14400012 | 2 | 6.5 | 1 | 11 | 2 | 2 |
| 14400731 | 9 | 11 | 1 | 16 | 2.75 | 2.75 |
| 14400480 | 6 | 11 | 3 | 16 | 1.75 | 1.75 |
| 14400618 | 7.5 | 12 | 6 | 20 | 3.5 | 3.5 |
| 14400929 | 9.5 | 14 | 2 | 17.5 | 3 | 3 |
| 14400642 | 8 | 10 | 2 | 15 | 3.5 | 3.5 |
| 14400502 | 6 | 12 | 1.5 | 16 | 1.75 | 1.75 |
| 14400278 | 5 | 7 | 3 | 11 | 2.75 | 2.75 |
| 14400898 | 9.5 | 13 | 3 | 17.5 | 3 | 3 |
| 14401460 | 30 | 35 | 3 | 40 | 4 | 4 |
| 14400251 | 5 | 7 | 1.5 | 11 | 2.75 | 2.75 |
| 14401444 | 30 | 35 | 1.5 | 40 | 4 | 4 |
| 14400932 | 10 | 14 | 2 | 20 | 3 | 3 |
| 14400111 | 3 | 7 | 3 | 10 | 1.5 | 3 |
| 14401479 | 30 | 35 | 4 | 40 | 4 | 4 |
| 14401207 | 13 | 17 | 6 | 23 | 4 | 4 |
| 14400367 | 6 | 9 | 1 | 14 | 3 | 3 |
| 14400421 | 6 | 10 | 1.5 | 14 | 3 | 3 |
| 14400324 | 5.5 | 8 | 1 | 11 | 2 | 2 |
| 14401266 | 15 | 22 | 1 | 26 | 4.5 | 4.5 |
| 14401380 | 20 | 28 | 2 | 36 | 5 | 5 |
| 14401095 | 12 | 20 | 2 | 25 | 2.5 | 2.5 |
| 14401339 | 16 | 22 | 2 | 29.5 | 4 | 4 |
| 14401150 | 13 | 17 | 1.5 | 23 | 4 | 4 |
| 14400880 | 9.5 | 13 | 2 | 17.5 | 3 | 3 |
| 14401240 | 14 | 20 | 3 | 28 | 4 | 4 |
| 14400456 | 6 | 11 | 1 | 16 | 1.75 | 1.75 |
| 14400847 | 9 | 20 | 3 | 27 | 3.25 | 3.25 |
| 14400308 | 5 | 9 | 2 | 15 | 3 | 8 |
| 14400987 | 11 | 15 | 1.5 | 19 | 3 | 3 |
| 14401029 | 12 | 18 | 1 | 25 | 2.5 | 2.5 |
| 14400766 | 9 | 11 | 3 | 16 | 2.75 | 2.75 |
| 14400936 | 11 | 14 | 1 | 19 | 3 | 3 |
| 14400871 | 9.5 | 13 | 1.5 | 17.5 | 3 | 3 |
| 14400235 | 4.8 | 8.5 | 3 | 12 | 1.5 | 1.5 |
| 14400219 | 4.8 | 8 | 2 | 12 | 1.5 | 1.5 |
| 14400933 | 10 | 14 | 2.5 | 20 | 3 | 3 |
| 14401045 | 12 | 18 | 2 | 25 | 2.5 | 2.5 |
| 14400839 | 9 | 20 | 2 | 27 | 3.25 | 3.25 |
| 14400825 | 9 | 16 | 4 | 22 | 4 | 4 |
| 14401450 | 48 | 60 | 2.5 | 68 | 3.75 | 3.75 |
| 14400855 | 9 | 20 | 4 | 27 | 3.25 | 3.25 |
| 14400065 | 2 | 8 | 2 | 11 | 2 | 2 |
| 14400708 | 8 | 11 | 4 | 15 | 3.5 | 3.5 |
| 14400121 | 3 | 7 | 3.5 | 10 | 1.5 | 3 |
| 14400995 | 11 | 15 | 2 | 19 | 3 | 3 |
| 14400294 | 5 | 9 | 1.5 | 15 | 3 | 8 |
| 14401122 | 12 | 25.5 | 8 | 40 | 4 | 4 |
| 14400804 | 9 | 16 | 2 | 22 | 4 | 4 |
| 14400316 | 5 | 9 | 3 | 15 | 3 | 8 |
| 14401452 | 30 | 35 | 2 | 40 | 4 | 4 |
| 14400103 | 3 | 7 | 2 | 10 | 1.5 | 3 |
| 14401118 | 12 | 20 | 4 | 25 | 2.5 | 2.5 |
| 14400464 | 6 | 11 | 1.5 | 16 | 1.75 | 1.75 |
| 14401222 | 14 | 20 | 1 | 28 | 4 | 4 |
| 14401145 | 13 | 17 | 1 | 23 | 4 | 4 |
| 14400685 | 8 | 11 | 1.5 | 15 | 3.5 | 3.5 |
| 14401451 | 30 | 35 | 1 | 40 | 4 | 4 |
| 14401420 | 23 | 30 | 2 | 38 | 3.5 | 3.5 |
| 14400430 | 6 | 10 | 2 | 14 | 3 | 3 |
| 14400910 | 9.5 | 13 | 5 | 17.5 | 3 | 3 |
| 14400286 | 5 | 9 | 1 | 15 | 3 | 8 |
| 14401037 | 12 | 18 | 1.5 | 25 | 2.5 | 2.5 |
| 14400535 | 7 | 12 | 1 | 16 | 3.25 | 3.25 |
| 14401456 | 48 | 60 | 4 | 68 | 3.75 | 3.75 |
| 14401169 | 13 | 17 | 2 | 23 | 4 | 4 |
| 14400863 | 9.5 | 13 | 1 | 17.5 | 3 | 3 |
| 14401449 | 48 | 60 | 2 | 68 | 3.75 | 3.75 |
| 14400350 | 5.8 | 10 | 1.5 | 16 | 3.75 | 3.75 |
| 14401282 | 15 | 22 | 2 | 26 | 4.5 | 4.5 |
| 14400770 | 9 | 11 | 4 | 16 | 2.75 | 2.75 |
| 14400960 | 11 | 14 | 3 | 19 | 3 | 3 |
| 14400931 | 10 | 14 | 1.5 | 20 | 3 | 3 |
| 14400391 | 6 | 9 | 3 | 14 | 3 | 3 |
| 14400154 | 4 | 8 | 2 | 11 | 2 | 2 |
| 14400081 | 3 | 7 | 1 | 10 | 1.5 | 3 |
| 14400695 | 8 | 11 | 2 | 15 | 3.5 | 3.5 |
| 14400677 | 8 | 11 | 1 | 15 | 3.5 | 3.5 |
| 14400570 | 7.5 | 12 | 1 | 20 | 3.5 | 3.5 |
| 14401134 | 12 | 28 | 8 | 40 | 4 | 4 |
| 14400944 | 11 | 14 | 1.5 | 19 | 3 | 3 |
| 14400979 | 11 | 15 | 1 | 19 | 3 | 3 |
| 14400634 | 8 | 10 | 1.5 | 15 | 3.5 | 3.5 |
| 14401053 | 12 | 18 | 3 | 25 | 2.5 | 2.5 |
| 14400553 | 7 | 12 | 2 | 16 | 3.25 | 3.25 |
| 14401258 | 14 | 20 | 4 | 28 | 4 | 4 |
| 14401320 | 16 | 22 | 1.5 | 29.5 | 4 | 4 |
| 14400383 | 6 | 9 | 2 | 14 | 3 | 3 |
| 14400073 | 3 | 5 | 1 | 11 | 1.5 | 3 |
| 14400499 | 6 | 12 | 1 | 16 | 1.75 | 1.75 |
| 14400790 | 9 | 16 | 1.5 | 22 | 4 | 4 |
| 14400162 | 4.5 | 9.5 | 1 | 14 | 4.5 | 4.5 |
| 14401177 | 13 | 17 | 3 | 23 | 4 | 4 |
| 14400375 | 6 | 9 | 1.5 | 14 | 3 | 3 |
| 14401398 | 20 | 28 | 3 | 36 | 5 | 5 |
| 14400758 | 9 | 11 | 2 | 16 | 2.75 | 2.75 |
| 14401193 | 13 | 17 | 5 | 23 | 4 | 4 |
| 14401401 | 20 | 28 | 4 | 36 | 5 | 5 |
| 14401088 | 12 | 20 | 1.5 | 25 | 2.5 | 2.5 |
| 14401371 | 20 | 28 | 1.5 | 36 | 5 | 5 |
| 14400626 | 8 | 10 | 1 | 15 | 3.5 | 3.5 |
| 14400146 | 4 | 8 | 1.5 | 11 | 2 | 2 |
| 14400340 | 5.5 | 8 | 2 | 11 | 2 | 2 |
| 14400669 | 8 | 10 | 4 | 15 | 3.5 | 3.5 |
| 14401421 | 23 | 30 | 3 | 38 | 3.5 | 3.5 |
| 14401355 | 18.5 | 25 | 1.5 | 32.5 | 4.5 | 4.5 |
| 14400195 | 4.8 | 8 | 1 | 12 | 1.5 | 1.5 |
| 14400200 | 4.8 | 8 | 1.5 | 12 | 1.5 | 1.5 |
| 14400510 | 6 | 12 | 2 | 16 | 1.75 | 1.75 |
| 14401363 | 20 | 28 | 1 | 36 | 5 | 5 |
| 14401304 | 15 | 22 | 8 | 26 | 4.5 | 4.5 |
| 14400135 | 4 | 8 | 1 | 11 | 2 | 2 |
| 14400049 | 2 | 8 | 1 | 11 | 2 | 2 |
| 14400650 | 8 | 10 | 3 | 15 | 3.5 | 3.5 |
| 14401410 | 20 | 28 | 6 | 36 | 5 | 5 |
| 14400405 | 6 | 9 | 4 | 14 | 3 | 3 |
| 14400785 | 9 | 16 | 1 | 16 | 4 | 4 |
| 14400812 | 9 | 16 | 3 | 22 | 4 | 4 |
| 14401423 | 23 | 30 | 4 | 38 | 3.5 | 3.5 |
| 14400227 | 4.8 | 8 | 3 | 12 | 1.5 | 1.5 |
