Cable tie holders (PA), plug-mount
Mounting method
Plug
Plate thickness
0.8 to 3.6
Material
Polyamide

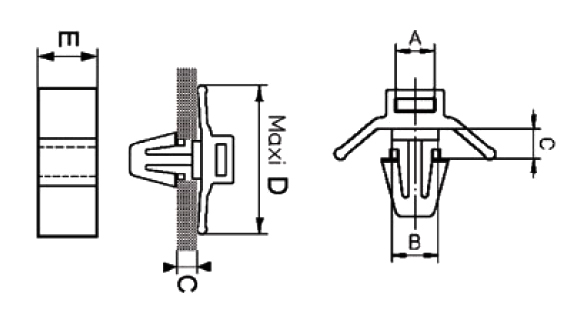

| Partnumber | B | D | E | Plate thickness | For tie width | Colour |
|---|---|---|---|---|---|---|
| 17869031 | 6 | 23.5 | 9.5 | 1 to 3.6 | 3.8 | Transparent |
| 17869028 | 5 | 20.5 | 7 | 1 to 3.6 | 3.8 | Black |
| 17869032 | 6 | 23.5 | 9.5 | 1 to 3.6 | 3.8 | Black |
| 17869030 | 6 | 22 | 9.5 | 0.8 to 2.7 | 3.8 | Black |
| 17869027 | 5 | 20.5 | 7 | 1 to 3.6 | 3.8 | Transparent |
| 17869025 | 5 | 18.5 | 7 | 0.8 to 2.7 | 3.8 | Transparent |
| 17869026 | 5 | 18.5 | 7 | 0.8 to 2.7 | 3.8 | Black |
| 17869029 | 6 | 22 | 9.5 | 0.8 to 2.7 | 4.8 | Transparent |
