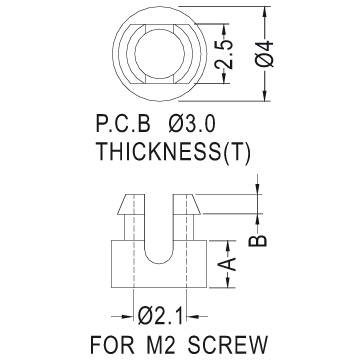

Spacers
Top hole
3mm
Top panel thickness
0.8 to 1.6mm
Type
Screw
Material
Nylon
Flame class
UL-94-V2
| Partnumber | A | B | Thickness (T) |
|---|---|---|---|
| 28003225 | 2 | 0.5 | 0.8 to 1 |
| 28003234 | 2 | 1 | 1.6 to 1.6 |
| 28003222 | 5 | 1.2 | 0.8 to 1 |
| 28003236 | 3 | 1 | 1.6 to 1.6 |
| 28003224 | 6 | 1.2 | 0.8 to 1 |
| 28003220 | 4 | 1.2 | 0.8 to 1 |
| 28003238 | 4 | 1 | 1.6 to 1.6 |
| 28003218 | 3 | 1.2 | 0.8 to 1 |
| 28003229 | 4 | 0.5 | 0.8 to 1 |
| 28003242 | 6 | 1 | 1.6 to 1.6 |
| 28003230 | 4.5 | 0.5 | 0.8 to 1 |
| 28003235 | 2.5 | 1 | 1.6 to 1.6 |
| 28003239 | 4.5 | 1 | 1.6 to 1.6 |
| 28003237 | 3.5 | 1 | 1.6 to 1.6 |
| 28003217 | 2.5 | 1.2 | 0.8 to 1 |
| 28003223 | 5.5 | 1.2 | 0.8 to 1 |
| 28003227 | 3 | 0.5 | 0.8 to 1 |
| 28003219 | 3.5 | 1.2 | 0.8 to 1 |
| 28003228 | 3.5 | 0.5 | 0.8 to 1 |
| 28003232 | 5.5 | 0.5 | 0.8 to 1 |
| 28003243 | 8 | 1 | 1.6 to 1.6 |
| 28003226 | 2.5 | 0.5 | 0.8 to 1 |
| 28003216 | 2 | 1.2 | 0.8 to 1 |
| 28003241 | 5.5 | 1 | 1.6 to 1.6 |
| 28003221 | 4.5 | 1.2 | 0.8 to 1 |
| 28003240 | 5 | 1 | 1.6 to 1.6 |
| 28003233 | 6 | 0.5 | 0.8 to 1 |
| 28003231 | 5 | 0.5 | 0.8 to 1 |
