Spacers
Top hole
4mm
Top panel thickness
1.6 to 1.8mm
Type
Screw
Material
Nylon
Flame class
UL-94-V2

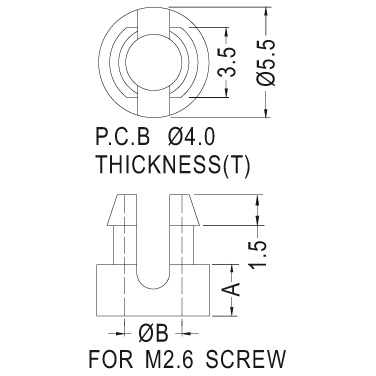

| Partnumber | A | B | Thickness (T) |
|---|---|---|---|
| 28003259 | 3 | 2.7 | 1.6 to 1.6 |
| 28003258 | 2.5 | 2.7 | 1.6 to 1.6 |
| 28003271 | 9.5 | 2.8 | 1.6 to 1.8 |
| 28003260 | 4 | 2.7 | 1.6 to 1.6 |
| 28003270 | 8 | 2.8 | 1.6 to 1.8 |
| 28003263 | 2.5 | 2.1 | 1.6 to 1.8 |
| 28003262 | 6 | 2.7 | 1.6 to 1.6 |
| 28003265 | 3 | 2.8 | 1.6 to 1.8 |
| 28003269 | 6 | 2.8 | 1.6 to 1.8 |
| 28003267 | 5 | 2.8 | 1.6 to 1.8 |
| 28003261 | 5 | 2.7 | 1.6 to 1.6 |
| 28003268 | 5.4 | 2.8 | 1.6 to 1.8 |
| 28003264 | 2.5 | 2.8 | 1.6 to 1.8 |
| 28003266 | 4 | 2.8 | 1.6 to 1.8 |
