Spacers
Type
Screw
Material
Nylon
Flame class
UL-94-V2

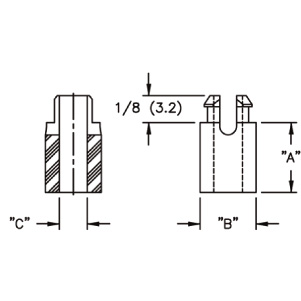

| Partnumber | A | Screw | B | C |
|---|---|---|---|---|
| mm | ||||
| 27103300 | 11.1 | M3 | 6.4 | 3.2 |
| 27103296 | 12.7 | M3 | 6.4 | 3.2 |
| 27103245 | 6.4 | M3 | 6.4 | 3.2 |
| 27103414 | 9.5 | M4 | 7.1 | 4.3 |
| 27103310 | 11.1 | M4 | 7.1 | 4.3 |
| 27103390 | 7.9 | M3 | 6.4 | 3.2 |
| 27103304 | 25.4 | M3 | 6.4 | 3.2 |
| 27103307 | 19.1 | M3.5 | 7.1 | 3.9 |
| 27103301 | 15.9 | M3 | 6.4 | 3.2 |
| 27103498 | 6.4 | M4 | 7.1 | 4.3 |
| 27103308 | 22.2 | M3.5 | 7.1 | 3.9 |
| 27103495 | 4.8 | M3 | 6.4 | 3.2 |
| 27103402 | 7.9 | M3.5 | 7.1 | 3.9 |
| 27103340 | 3.2 | M3 | 6.4 | 3.2 |
| 27103302 | 19.1 | M3 | 6.4 | 3.2 |
| 27103404 | 9.5 | M3.5 | 7.1 | 3.9 |
| 27103305 | 11.1 | M3.5 | 7.1 | 3.9 |
| 27103303 | 22.2 | M3 | 6.4 | 3.2 |
| 27103309 | 25.4 | M3.5 | 7.1 | 3.9 |
| 27103331 | 9.5 | M3 | 6.4 | 3.2 |
| 27103501 | 12.7 | M4 | 7.1 | 4.3 |
| 27103499 | 7.9 | M4 | 7.1 | 4.3 |
| 27103306 | 15.9 | M3.5 | 7.1 | 3.9 |
| 27103496 | 6.4 | M3.5 | 7.1 | 3.9 |
| 27103419 | 19.1 | M4 | 7.1 | 4.3 |
| 27103412 | 12.7 | M3.5 | 7.1 | 3.9 |
| 27103313 | 25.4 | M4 | 7.1 | 4.3 |
| 27103420 | 22.4 | M4 | 7.1 | 4.3 |
| 27103311 | 15.9 | M4 | 7.1 | 4.3 |
