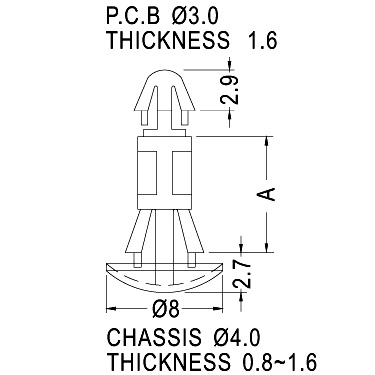

Reverse PCB spacer
Top hole
3mm
Top panel thickness
1.6mm
Bottom hole
4mm
Bottom panel thickness
0.8 to 1.6mm
Material
Nylon
Flame class
UL-94-V2
| Partnumber | A |
|---|---|
| 28000144 | 8 |
| 28000141 | 5 |
| 28000147 | 12 |
| 28000143 | 7 |
| 28000140 | 4 |
| 28000142 | 6 |
| 28000139 | 3.2 |
| 28000138 | 2.5 |
| 28000145 | 9 |
| 28000146 | 10 |
| 28000149 | 16 |
| 28000148 | 14 |
