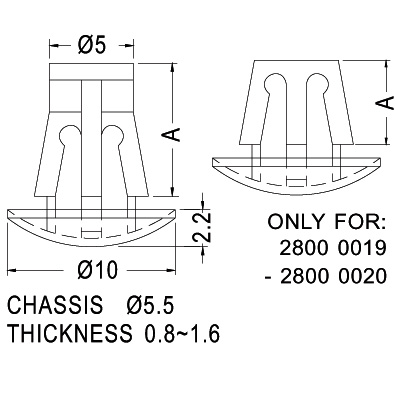

Reverse PCB spacer
Top hole
5mm
Bottom hole
5.5mm
Bottom panel thickness
0.8 to 1.6mm
Material
Nylon
Flame class
UL-94-V2
| Partnumber | A |
|---|---|
| 28000027 | 12.7 |
| 28000030 | 15.2 |
| 28000026 | 12 |
| 28000028 | 13.5 |
| 28000038 | 30 |
| 28000022 | 7 |
| 28000033 | 19 |
| 28000032 | 18 |
| 28000025 | 10 |
| 28000029 | 14 |
| 28000023 | 8 |
| 28000034 | 20 |
| 28000019 | 3.5 |
| 28000031 | 15.9 |
| 28000021 | 6.35 |
| 28000037 | 25.4 |
| 28000020 | 5 |
| 28000024 | 8.5 |
| 28000035 | 21.7 |
| 28000036 | 24 |
