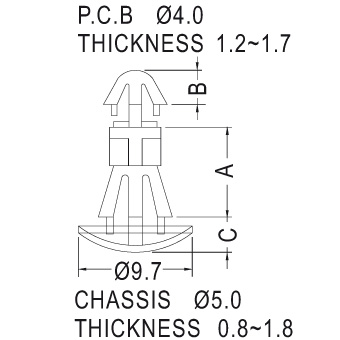

Reverse PCB spacer
Top hole
4mm
Top panel thickness
1.2 to 1.7mm
Bottom hole
5mm
Bottom panel thickness
0.8 to 1.8mm
Material
Nylon
Flame class
UL-94-V2
| Partnumber | A | B | C |
|---|---|---|---|
| mm | |||
| 28000491 | 16 | 3.2 | 2.3 |
| 28000489 | 6 | 3.2 | 2.3 |
| 28000490 | 13.8 | 3 | 2.85 |
