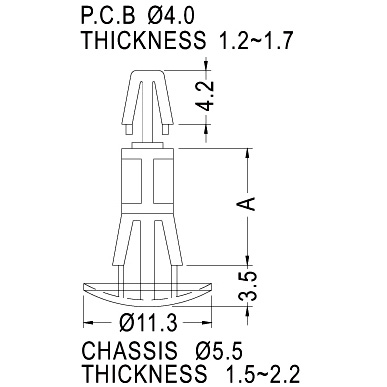

Reverse PCB spacer
Top hole
4mm
Top panel thickness
1.2 to 1.7mm
Bottom hole
5.5mm
Bottom panel thickness
1.5 to 2.2mm
Material
Nylon
Flame class
UL-94-V2
| Partnumber | A |
|---|---|
| 28000227 | 6.35 |
| 28000225 | 3.5 |
| 28000229 | 10 |
| 28000226 | 5 |
| 28000231 | 15.9 |
| 28000230 | 12.7 |
| 28000228 | 8 |
| 28000232 | 19 |
| 28000233 | 25.4 |
| 28000234 | 35.5 |
