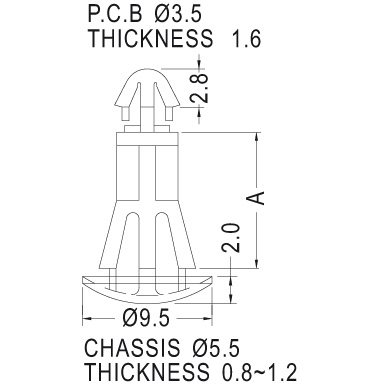

Reverse PCB spacer
Top hole
3.5mm
Top panel thickness
1.6mm
Bottom hole
5.5mm
Bottom panel thickness
0.8 to 1.2mm
Material
Nylon
Flame class
UL-94-V2
| Partnumber | A |
|---|---|
| 28000178 | 4.8 |
| 28000182 | 10 |
| 28000185 | 15.9 |
| 28000180 | 7 |
| 28000181 | 8 |
| 28000183 | 11 |
| 28000179 | 6.35 |
| 28000184 | 12.7 |
| 28000177 | 3.5 |
