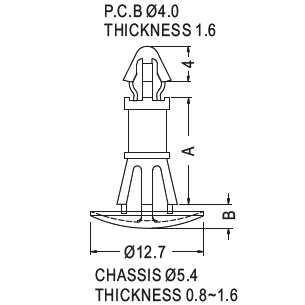

Reverse PCB spacer
Top hole
4mm
Top panel thickness
1.6mm
Bottom hole
5.4mm
Bottom panel thickness
0.8 to 1.6mm
Material
Nylon
Flame class
UL-94-V2
| Partnumber | A | B |
|---|---|---|
| 28090004 | 12.7 | 2.7 |
| 28090002 | 8 | 2.9 |
| 28090003 | 12 | 2.7 |
