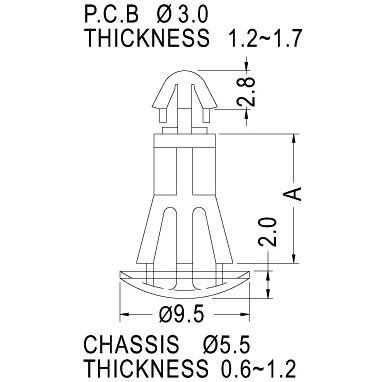

Reverse PCB spacer
Top hole
3mm
Top panel thickness
1.2 to 1.7mm
Bottom hole
5.5mm
Bottom panel thickness
0.6 to 1.2mm
Material
Nylon
Flame class
UL-94-V2
| Partnumber | A |
|---|---|
| 28000172 | 15.9 |
| 28000165 | 4.8 |
| 28000171 | 12.7 |
| 28000164 | 3.5 |
| 28000170 | 11 |
| 28000169 | 10 |
| 28000167 | 7 |
| 28000168 | 8 |
| 28000166 | 6.35 |
