Plastic round spacer, no thread, nylon
Type
Round, no thread
Colour
Natural
Material
Nylon
Flame class
UL-94-V2

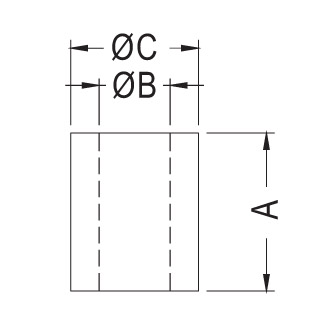

| Partnumber | Length (L) | A | B | C |
|---|---|---|---|---|
| mm | ||||
| 28005297 | 27 | 27 | 4.2 | 6.3 |
| 28005274 | 7 | 7 | 4.2 | 6.3 |
| 28005185 | 15.5 | 15.5 | 3.2 | 5 |
| 28005294 | 24 | 24 | 4.2 | 6.3 |
| 28005218 | 2 | 2 | 3.5 | 6.3 |
| 28005223 | 5 | 5 | 3.5 | 6.3 |
| 28005410 | 8 | 8 | 2.2 | 3.7 |
| 28005302 | 40 | 40 | 4.2 | 6.3 |
| 28005174 | 8 | 8 | 3.2 | 5 |
| 28005434 | 3 | 3 | 2.6 | 4.5 |
| 28005512 | 16 | 16 | 29.5 | 33.5 |
| 28005435 | 4 | 4 | 2.6 | 4.5 |
| 28005225 | 7 | 7 | 3.5 | 6.3 |
| 28005184 | 15 | 15 | 3.2 | 5 |
| 28005268 | 3 | 3 | 4.2 | 6.3 |
| 28005433 | 2 | 2 | 2.6 | 4.5 |
| 28005293 | 23 | 23 | 4.2 | 6.3 |
| 28005283 | 13 | 13 | 4.2 | 6.3 |
| 28005282 | 12.7 | 12.7 | 4.2 | 6.3 |
| 28005280 | 11 | 11 | 4.2 | 6.3 |
| 28005495 | 2.5 | 2.5 | 1.2 | 4 |
| 28005219 | 3 | 3 | 3.5 | 6.3 |
| 28005292 | 22 | 22 | 4.2 | 6.3 |
| 28005246 | 24 | 24 | 3.7 | 6.3 |
| 28005409 | 7 | 7 | 2.2 | 3.7 |
| 28005438 | 7 | 7 | 2.6 | 4.5 |
| 28005170 | 6 | 6 | 3.2 | 5 |
| 28005295 | 25 | 25 | 4.2 | 6.3 |
| 28005187 | 16.5 | 16.5 | 3.2 | 5 |
| 28005249 | 27 | 27 | 3.7 | 6.3 |
| 28005296 | 26 | 26 | 4.2 | 6.3 |
| 28005498 | 5.58 | 5.58 | 3.2 | 5 |
| 28005278 | 9.5 | 9.5 | 4.2 | 6.3 |
| 28005182 | 13.6 | 13.6 | 3.2 | 5 |
| 28005286 | 16 | 16 | 4.2 | 6.3 |
| 28005162 | 2.5 | 2.5 | 3.2 | 5 |
| 28005167 | 4.5 | 4.5 | 3.2 | 5 |
| 28005240 | 18 | 18 | 3.5 | 6.3 |
| 28005270 | 4 | 4 | 4.2 | 6.3 |
| 28005301 | 30 | 30 | 4.2 | 6.3 |
| 28005197 | 24 | 24 | 3.2 | 5 |
| 28005221 | 4 | 4 | 3.5 | 6.3 |
| 28005179 | 11 | 11 | 3.2 | 5 |
| 28005189 | 17 | 17 | 3.2 | 5 |
| 28005190 | 17.5 | 17.5 | 3.2 | 5 |
| 28005406 | 4.3 | 4.3 | 2.2 | 3.7 |
| 28005447 | 16 | 16 | 2.6 | 4.5 |
| 28005241 | 19 | 19 | 3.5 | 6.3 |
| 28005480 | 20 | 20 | 5.6 | 8.6 |
| 28005232 | 12 | 12 | 3.5 | 6.3 |
| 28005252 | 30 | 30 | 3.7 | 6.3 |
| 28005506 | 11 | 11 | 5.2 | 7.6 |
| 28005445 | 14 | 14 | 2.6 | 4.5 |
| 28005168 | 5 | 5 | 3.2 | 5 |
| 28005161 | 2 | 2 | 3.2 | 5 |
| 28005245 | 23 | 23 | 3.7 | 6.3 |
| 28005403 | 2.5 | 2.5 | 2.2 | 3.7 |
| 28005499 | 3 | 3 | 3.2 | 5.8 |
| 28005502 | 6.4 | 6.4 | 4.4 | 9.5 |
| 28005176 | 9.5 | 9.5 | 3.2 | 5 |
| 28005511 | 122 | 122 | 5.4 | 9.53 |
| 28005224 | 6 | 6 | 3.5 | 6.3 |
| 28005405 | 3.2 | 3.2 | 2.2 | 3.7 |
| 28005288 | 18 | 18 | 4.2 | 6.3 |
| 28005230 | 10 | 10 | 3.5 | 6.3 |
| 28005229 | 9.5 | 9.5 | 3.5 | 6.3 |
| 28005181 | 13 | 13 | 3.2 | 5 |
| 28005479 | 16.5 | 16.5 | 5.6 | 8.6 |
| 28005413 | 11 | 11 | 2.2 | 3.7 |
| 28005191 | 18 | 18 | 3.2 | 5 |
| 28005285 | 15 | 15 | 4.2 | 6.3 |
| 28005169 | 5.5 | 5.5 | 3.2 | 5 |
| 28005194 | 21 | 21 | 3.2 | 5 |
| 28005500 | 6.4 | 6.4 | 3.2 | 6.4 |
| 28005412 | 10 | 10 | 2.2 | 3.7 |
| 28005478 | 8 | 8 | 5.6 | 8.6 |
| 28005507 | 4.8 | 4.8 | 6.6 | 9.1 |
| 28005411 | 9 | 9 | 2.2 | 3.7 |
| 28005437 | 6 | 6 | 2.6 | 4.5 |
| 28005239 | 17.7 | 17.7 | 3.5 | 6.3 |
| 28005227 | 8 | 8 | 3.5 | 6.3 |
| 28005407 | 5 | 5 | 2.2 | 3.7 |
| 28005267 | 2 | 2 | 4.2 | 6.3 |
| 28005273 | 6 | 6 | 4.2 | 6.3 |
| 28005163 | 3 | 3 | 3.2 | 5 |
| 28005418 | 16 | 16 | 2.2 | 3.7 |
| 28005164 | 3.3 | 3.3 | 3.2 | 5 |
| 28005277 | 9 | 9 | 4.2 | 6.3 |
| 28005271 | 4.83 | 4.83 | 4.2 | 6.3 |
| 28005443 | 12 | 12 | 2.6 | 4.5 |
| 28005177 | 10 | 10 | 3.2 | 5 |
| 28005284 | 14 | 14 | 4.2 | 6.3 |
| 28005193 | 20 | 20 | 3.2 | 5 |
| 28005281 | 12 | 12 | 4.2 | 6.3 |
| 28005173 | 7.5 | 7.5 | 3.2 | 5 |
| 28005408 | 6 | 6 | 2.2 | 3.7 |
| 28005165 | 3.5 | 3.5 | 3.2 | 5 |
| 28005291 | 21 | 21 | 4.2 | 6.3 |
| 28005508 | 15.7 | 15.7 | 6.6 | 9.1 |
| 28005172 | 7 | 7 | 3.2 | 5 |
| 28005416 | 14 | 14 | 2.2 | 3.7 |
| 28005178 | 10.5 | 10.5 | 3.2 | 5 |
| 28005226 | 7.5 | 7.5 | 3.5 | 6.3 |
| 28005289 | 19 | 19 | 4.2 | 6.3 |
| 28005440 | 9 | 9 | 2.6 | 4.5 |
| 28005199 | 26 | 26 | 3.2 | 5 |
| 28005192 | 19 | 19 | 3.2 | 5 |
| 28005203 | 30 | 30 | 3.2 | 5 |
| 28005287 | 17 | 17 | 4.2 | 6.3 |
| 28005275 | 7.5 | 7.5 | 4.2 | 6.3 |
| 28005501 | 6.4 | 6.4 | 3.2 | 5.8 |
| 28005198 | 25 | 25 | 3.2 | 5 |
| 28005231 | 11 | 11 | 3.5 | 6.3 |
| 28005510 | 29 | 29 | 7.5 | 11 |
| 28005505 | 4.1 | 4.1 | 5.2 | 6.8 |
| 28005444 | 13 | 13 | 2.6 | 4.5 |
| 28005404 | 3 | 3 | 2.2 | 3.7 |
| 28005238 | 17 | 17 | 3.5 | 6.3 |
| 28005234 | 14 | 14 | 3.5 | 6.3 |
| 28005180 | 12 | 12 | 3.2 | 5 |
| 28005236 | 15.5 | 15.5 | 3.5 | 6.3 |
| 28005504 | 2.3 | 2.3 | 5.2 | 6.8 |
| 28005237 | 16 | 16 | 3.5 | 6.3 |
| 28005195 | 22 | 22 | 3.2 | 5 |
| 28005200 | 27 | 27 | 3.2 | 5 |
| 28005439 | 8 | 8 | 2.6 | 4.5 |
| 28005497 | 5.3 | 5.3 | 2.2 | 3.7 |
| 28005244 | 22 | 22 | 3.7 | 6.3 |
| 28005201 | 28 | 28 | 3.2 | 5 |
| 28005446 | 15 | 15 | 2.6 | 4.5 |
| 28005509 | 15.7 | 15.7 | 8.1 | 10.7 |
| 28005414 | 12 | 12 | 2.2 | 3.7 |
| 28005441 | 10 | 10 | 2.6 | 4.5 |
| 28005436 | 5 | 5 | 2.6 | 4.5 |
| 28005251 | 29 | 29 | 3.7 | 6.3 |
| 28005462 | 40 | 40 | 5 | 9 |
| 28005415 | 13 | 13 | 2.2 | 3.7 |
| 28005477 | 6 | 6 | 5.6 | 8.6 |
| 28005228 | 9 | 9 | 3.5 | 6.3 |
| 28005402 | 2 | 2 | 2.2 | 3.7 |
| 28005250 | 28 | 28 | 3.7 | 6.3 |
| 28005290 | 20 | 20 | 4.2 | 6.3 |
| 28005503 | 2.75 | 2.75 | 4.5 | 6 |
| 28005243 | 21 | 21 | 3.7 | 6.3 |
| 28005196 | 23 | 23 | 3.2 | 5 |
| 28005299 | 28.7 | 28.7 | 4.2 | 6.3 |
| 28005272 | 5 | 5 | 4.2 | 6.3 |
| 28005222 | 4.5 | 4.5 | 3.5 | 6.3 |
| 28005186 | 16 | 16 | 3.2 | 5 |
| 28005166 | 4 | 4 | 3.2 | 5 |
| 28005171 | 6.35 | 6.35 | 3.2 | 5 |
| 28005279 | 10 | 10 | 4.2 | 6.3 |
| 28005242 | 20 | 20 | 3.5 | 6.3 |
| 28005220 | 3.5 | 3.5 | 3.5 | 6.3 |
| 28005276 | 8 | 8 | 4.2 | 6.3 |
| 28005202 | 29 | 29 | 3.2 | 5 |
| 28005269 | 3.5 | 3.5 | 4.2 | 6.3 |
| 28005300 | 29 | 29 | 4.2 | 6.3 |
| 28005175 | 9 | 9 | 3.2 | 5 |
| 28005235 | 15 | 15 | 3.5 | 6.3 |
| 28005496 | 2.15 | 2.15 | 2.5 | 4 |
| 28005248 | 26 | 26 | 3.7 | 6.3 |
| 28005188 | 16.8 | 16.8 | 3.2 | 5 |
| 28005298 | 28 | 28 | 4.2 | 6.3 |
| 28005247 | 25 | 25 | 3.7 | 6.3 |
| 28005233 | 13 | 13 | 3.5 | 6.3 |
| 28005442 | 11 | 11 | 2.6 | 4.5 |
| 28005417 | 15 | 15 | 2.2 | 3.7 |
| 28005183 | 14 | 14 | 3.2 | 5 |
