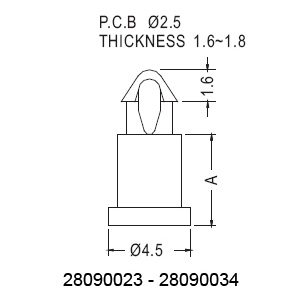

PCB support post
Top hole
2.5mm
Top panel thickness
1.6 to 1.8mm
Material
Nylon
Flame class
UL-94-V0 UL-94-V2
Shape
Single locking
| Partnumber | A |
|---|---|
| 28090026 | 2.7 |
| 28090030 | 4 |
| 28090034 | 6 |
| 28090031 | 4.5 |
| 28090029 | 3.5 |
| 28090032 | 5 |
| 28090033 | 5.7 |
| 28090025 | 2.5 |
| 28090024 | 1.5 |
| 28090028 | 3.2 |
| 28090027 | 3 |
