PCB support post
Top hole
5.2mm
Top panel thickness
1.2 to 1.6mm
Bottom hole
5.2mm
Bottom panel tickness
1.2 to 1.6mm
Material
Nylon
Flame class
UL-94-V0 UL-94-V2
Shape
Dual locking

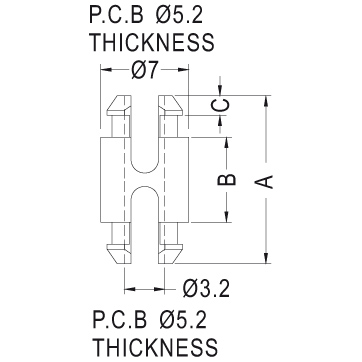

| Partnumber | A | B | C | Panel thickness |
|---|---|---|---|---|
| mm | mm | |||
| 28001242 | 16 | 9.6 | 1.85 | 1.2 |
| 28001241 | 15.8 | 9.2 | 1.55 | 1.6 |
