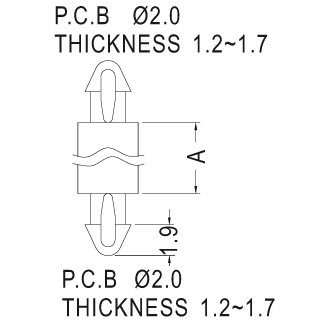

PCB support post
Top hole
2mm
Top panel thickness
1.2 to 1.7mm
Bottom hole
2mm
Bottom panel tickness
1.2 to 1.7mm
Material
Nylon
Flame class
UL-94-V2
Shape
Dual locking
| Partnumber | A |
|---|---|
| 28000589 | 6 |
| 28000592 | 10.5 |
| 28000587 | 4 |
| 28000591 | 8 |
| 28000594 | 14 |
| 28000593 | 12.5 |
| 28000586 | 3 |
| 28000588 | 5 |
| 28000590 | 6.5 |
| 28000585 | 2.2 |
