PCB support post
Top hole
4mm
Top panel thickness
1.6mm
Material
Nylon
Flame class
UL-94-V2
Shape
Single locking

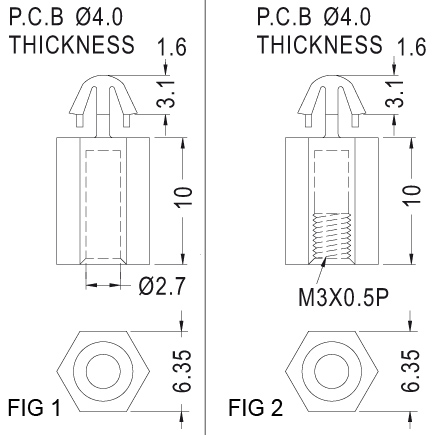

| Partnumber | A | Figure |
|---|---|---|
| 28082053 | 8 | 1 |
| 28082052 | 7 | 1 |
| 28082063 | 8 | 2 |
| 28082065 | 10 | 2 |
| 28082054 | 9 | 1 |
| 28082067 | 12.7 | 2 |
| 28082064 | 9 | 2 |
| 28082069 | 20 | 2 |
| 28082062 | 7 | 2 |
| 28082059 | 20 | 1 |
| 28082057 | 12.7 | 1 |
| 28082055 | 10 | 1 |
| 28082056 | 11 | 1 |
| 28082061 | 6 | 2 |
| 28082050 | 5 | 1 |
| 28082060 | 5 | 2 |
| 28082058 | 15.9 | 1 |
| 28082051 | 6 | 1 |
| 28082066 | 11 | 2 |
| 28082068 | 15.9 | 2 |
