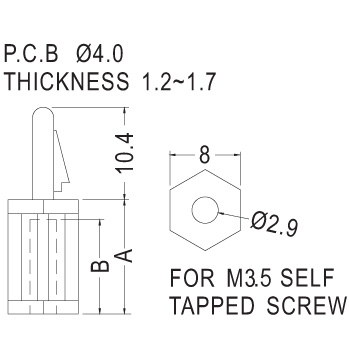

PCB support post
Top hole
4mm
Top panel thickness
1.2 to 1.7mm
Material
Nylon
Flame class
UL-94-V2
Shape
Single locking
| Partnumber | A | B |
|---|---|---|
| 28002972 | 12.7 | 11 |
| 28002977 | 25.6 | 24 |
| 28002975 | 19.2 | 16.2 |
| 28002974 | 16 | 13 |
| 28002978 | 29 | 25.9 |
| 28002976 | 22.4 | 19.4 |
| 28002971 | 9.6 | 8 |
| 28002970 | 6.4 | 4.8 |
| 28002973 | 14 | 12.7 |
