PCB support post
Top hole
4mm
Top panel thickness
1.6 to 2mm
Material
Nylon
Flame class
UL-94-V2
Shape
Single locking

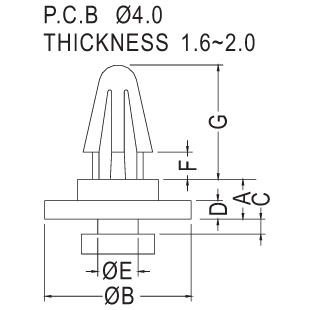

| Partnumber | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|
| mm | |||||||
| 28002832 | 3.2 | 11.6 | 1.2 | 1.5 | 3.2 | 2.2 | 9.2 |
| 28002831 | 2.5 | 11.5 | 1.4 | 1.5 | 2.8 | 2 | 9.1 |
