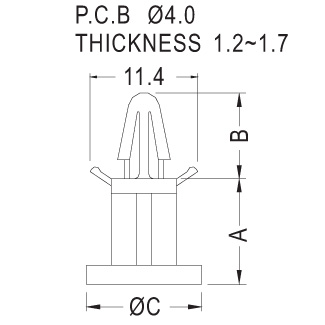

PCB support post
Top hole
4mm
Top panel thickness
1.2 to 1.7mm
Material
Nylon
Flame class
UL-94-V2
Shape
Single locking
| Partnumber | A | B | C |
|---|---|---|---|
| mm | |||
| 28002269 | 8 | 9.5 | 11.8 |
| 28002270 | 10 | 9 | 12 |
| 28002268 | 6.4 | 9.5 | 11.8 |
| 28002271 | 11 | 9 | 12 |
