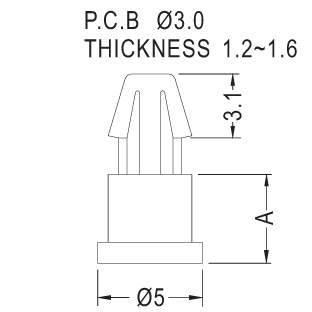

PCB support post
Top hole
3mm
Top panel thickness
1.2 to 1.6mm
Material
Nylon
Flame class
UL-94-V2
Shape
Single locking
| Partnumber | A |
|---|---|
| 28002250 | 5 |
| 28002249 | 4.5 |
| 28002245 | 2.5 |
| 28002244 | 2 |
| 28002251 | 5.5 |
| 28002246 | 3 |
| 28002248 | 4 |
| 28002252 | 6 |
| 28002247 | 3.5 |
| 28002253 | 6.5 |
