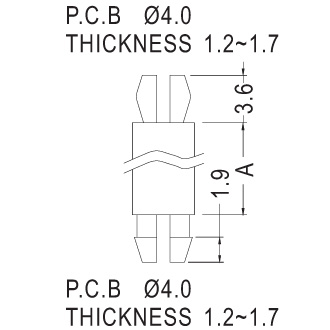

PCB support post
Top hole
4mm
Top panel thickness
1.2 to 1.7mm
Bottom hole
4mm
Bottom panel tickness
1.2 to 1.7mm
Material
Nylon
Flame class
UL-94-V2
Shape
Dual locking
| Partnumber | A |
|---|---|
| 28001205 | 9.5 |
| 28001209 | 15.9 |
| 28001211 | 22 |
| 28001201 | 5 |
| 28001207 | 12.7 |
| 28001202 | 6.3 |
| 28001206 | 10.5 |
| 28001204 | 8 |
| 28001198 | 3.2 |
| 28001200 | 4.5 |
| 28001208 | 14 |
| 28001210 | 19 |
| 28001199 | 4 |
| 28001203 | 7 |
