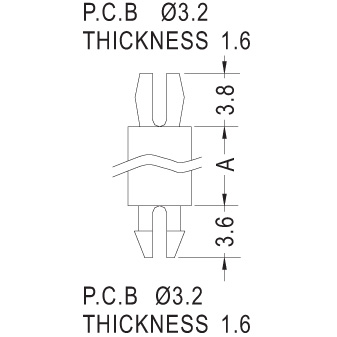

PCB support post
Top hole
3.2mm
Top panel thickness
1.6mm
Bottom hole
3.2mm
Bottom panel tickness
1.6mm
Material
Nylon
Flame class
UL-94-V2
Shape
Dual locking
| Partnumber | A |
|---|---|
| 28001170 | 14.3 |
| 28001183 | 38.1 |
| 28001167 | 9.5 |
| 28001180 | 31.7 |
| 28001181 | 31.8 |
| 28001163 | 3.2 |
| 28001182 | 34.9 |
| 28001176 | 21 |
| 28001178 | 25.4 |
| 28001164 | 4.8 |
| 28001166 | 7.9 |
| 28001172 | 16 |
| 28001169 | 12.7 |
| 28001173 | 17.5 |
| 28001168 | 11.1 |
| 28001174 | 19.1 |
| 28001175 | 20.6 |
| 28001179 | 28.5 |
| 28001171 | 15.9 |
| 28001177 | 22.2 |
| 28001165 | 6.4 |
