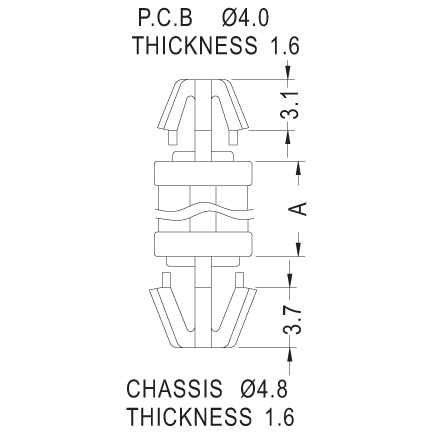

PCB support post
Top hole
4mm
Top panel thickness
1.6mm
Bottom hole
4.8mm
Bottom panel tickness
1.6mm
Material
Nylon
Flame class
UL-94-V2
Shape
Dual locking
| Partnumber | A |
|---|---|
| 28000956 | 6 |
| 28000955 | 4 |
| 28000958 | 10 |
| 28000954 | 3 |
| 28000960 | 14 |
| 28000961 | 16 |
| 28000962 | 18 |
| 28000957 | 8 |
| 28000959 | 12 |
