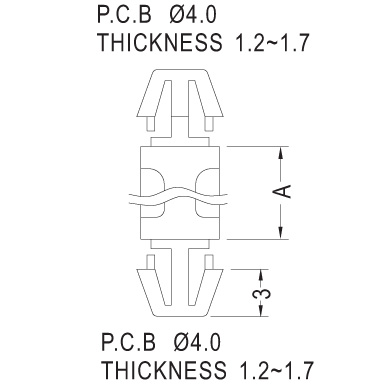

PCB support post
Top hole
4mm
Top panel thickness
1.2 to 1.7
Bottom hole
4mm
Bottom panel tickness
1.2 to 1.7mm
Material
Nylon
Flame class
UL-94-V2
Shape
Dual locking
| Partnumber | A |
|---|---|
| 28000921 | 71.2 |
| 28000910 | 12.7 |
| 28000908 | 11.5 |
| 28000923 | 74.2 |
| 28000924 | 80 |
| 28000912 | 15.9 |
| 28000913 | 18 |
| 28000900 | 3.5 |
| 28000909 | 12 |
| 28000916 | 25 |
| 28000902 | 5 |
| 28000922 | 72 |
| 28000920 | 69 |
| 28000906 | 10 |
| 28000918 | 30 |
| 28000901 | 4 |
| 28000914 | 19 |
| 28000903 | 6 |
| 28000911 | 14 |
| 28000904 | 6.4 |
| 28000917 | 27 |
| 28000905 | 8 |
| 28000919 | 34 |
| 28000915 | 20 |
| 28000907 | 10.5 |
| 28000899 | 3 |
