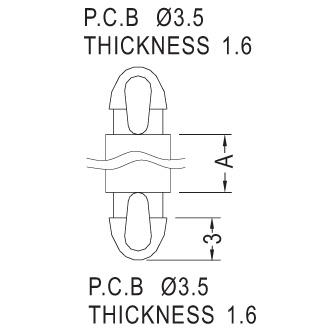

PCB support post
Top hole
3.5mm
Top panel thickness
1.6mm
Bottom hole
3.5mm
Bottom panel tickness
1.6mm
Material
Nylon
Flame class
UL-94-V2
Shape
Dual locking
| Partnumber | A |
|---|---|
| 28000734 | 16 |
| 28000726 | 4 |
| 28000733 | 14 |
| 28000730 | 8 |
| 28000728 | 6 |
| 28000735 | 18 |
| 28000725 | 3 |
| 28000729 | 7 |
| 28000727 | 5 |
| 28000737 | 22 |
| 28000731 | 10 |
| 28000732 | 12 |
| 28000724 | 2 |
| 28000736 | 20 |
