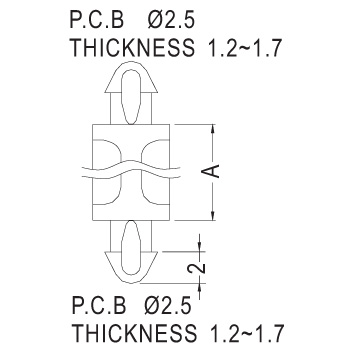

PCB support post
Top hole
2.5mm
Top panel thickness
1.2 to 1.7mm
Bottom hole
2.5mm
Bottom panel tickness
1.2 to 1.7mm
Material
Nylon
Flame class
UL-94-V2
Shape
Dual locking
| Partnumber | A |
|---|---|
| 28000654 | 2 |
| 28000658 | 6 |
| 28000660 | 8 |
| 28000663 | 10.5 |
| 28000656 | 4 |
| 28000664 | 12.7 |
| 28000662 | 10 |
| 28000655 | 3 |
| 28000661 | 9.5 |
| 28000659 | 7.5 |
| 28000657 | 5 |
