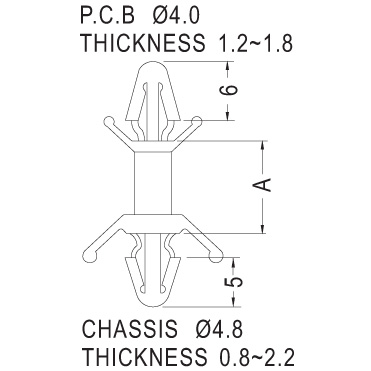

PCB spacer, 2 shoulders
Top hole
4mm
Top panel thickness
1.2 to 1.8mm
Bottom hole
4.8mm
Bottom panel thickness
0.8 to 2.2mm
Material
Nylon
Flame class
UL-94-V2
| Partnumber | A |
|---|---|
| 28001496 | 6.3 |
| 28001499 | 12.5 |
| 28001501 | 19 |
| 28001503 | 25.4 |
| 28001504 | 28.6 |
| 28001495 | 4.6 |
| 28001498 | 9.2 |
| 28001502 | 22 |
| 28001497 | 7.93 |
| 28001500 | 15.7 |
