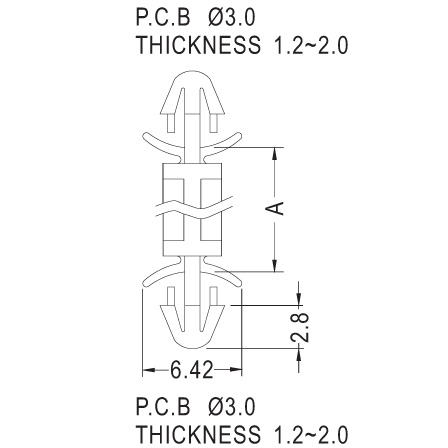

PCB spacer, 2 shoulders
Top hole
3mm
Top panel thickness
1.2 to 2mm
Bottom hole
3mm
Bottom panel thickness
1.2 to 2mm
Material
Nylon
Flame class
UL-94-V2
| Partnumber | A |
|---|---|
| 28001331 | 5 |
| 28001340 | 17 |
| 28001339 | 16 |
| 28001335 | 9.5 |
| 28001337 | 12 |
| 28001333 | 7 |
| 28001343 | 25.4 |
| 28001342 | 22 |
| 28001330 | 3.2 |
| 28001334 | 8 |
| 28001338 | 15 |
| 28001341 | 20 |
| 28001332 | 6.35 |
| 28001336 | 11.2 |
