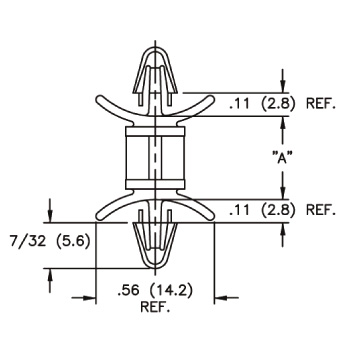

PCB spacer, 2 shoulders
Top hole
4mm
Top panel thickness
0.79 to 1.98mm
Bottom hole
4mm
Bottom panel thickness
0.79 to 1.98mm
Material
Nylon
Flame class
UL-94-V2
| Partnumber | A |
|---|---|
| 27100929 | 11.1 |
| 27100940 | 19.1 |
| 27100913 | 7.9 |
| 27100928 | 9.5 |
| 27100931 | 12.7 |
| 27100905 | 4.8 |
| 27100910 | 6.4 |
| 27100932 | 14.3 |
| 27100942 | 22.2 |
| 27100938 | 15.9 |
