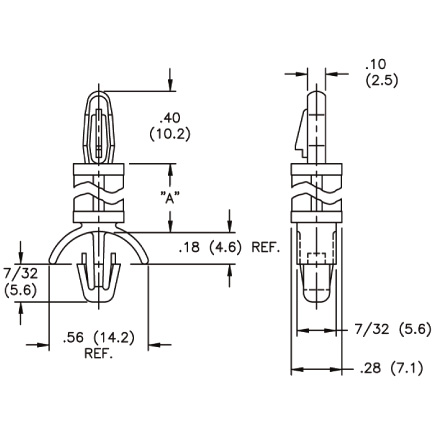

PCB spacer, 1 shoulder
Top hole
4mm
Top panel thickness
1.57mm
Bottom hole
4.75mm
Bottom panel thickness
1.98 to 1.98mm
Material
Nylon
Flame class
UL-94-V2
| Partnumber | A |
|---|---|
| 27100608 | 9.5 |
| 27100614 | 34.7 |
| 27100612 | 28.6 |
| 27110600 | 22.2 |
| 27110400 | 6.4 |
| 27100603 | 11.1 |
| 27100602 | 4.8 |
| 27100613 | 31.7 |
| 27100607 | 7.9 |
| 27100609 | 15.9 |
| 27100601 | 12.7 |
| 27100610 | 19.1 |
| 27100611 | 25.4 |
