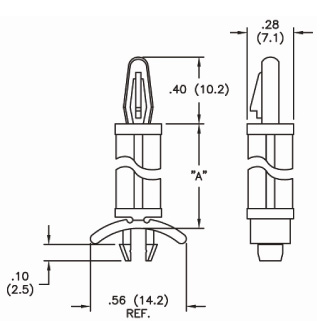

PCB spacer, 1 shoulder
Top hole
4mm
Top panel thickness
1.57mm
Bottom hole
4.75mm
Bottom panel thickness
0.79 to 1.98mm
Material
Nylon
Flame class
UL-94-V2
| Partnumber | A |
|---|---|
| 27100735 | 6.4 |
| 27100807 | 31.7 |
| 27100737 | 9.5 |
| 27100808 | 34.8 |
| 27100805 | 25.4 |
| 27100742 | 22.2 |
| 27100736 | 7.9 |
| 27100739 | 12.7 |
| 27100738 | 11.1 |
| 27100741 | 19.1 |
| 27100734 | 4.8 |
| 27100740 | 15.9 |
| 27100806 | 28.6 |
