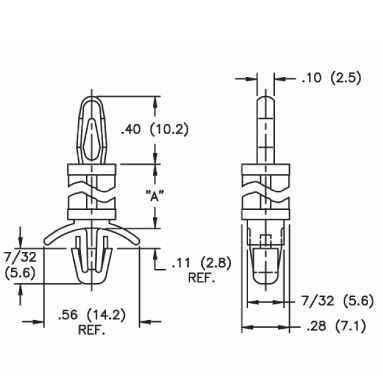

PCB spacer, 1 shoulder
Top hole
4mm
Top panel thickness
1.57mm
Bottom hole
4.75mm
Bottom panel thickness
0.79 to 1.98mm
Material
Nylon
Flame class
UL-94-V2
| Partnumber | A |
|---|---|
| 27100728 | 15.9 |
| 27100779 | 25.4 |
| 27100725 | 6.4 |
| 27100730 | 22.2 |
| 27100731 | 28.6 |
| 27100729 | 19.1 |
| 27100773 | 9.5 |
| 27100726 | 7.9 |
| 27100724 | 4.8 |
| 27100733 | 34.9 |
| 27100732 | 31.7 |
| 27100775 | 12.7 |
| 27100727 | 11.1 |
