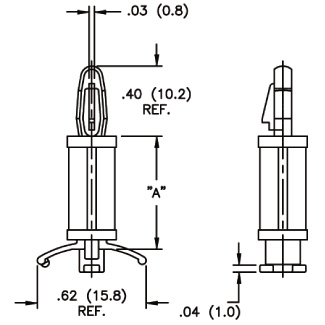

PCB spacer, 1 shoulder
Top hole
4mm
Top panel thickness
1.57mm
Bottom panel thickness
0.79 to 1.6mm
Material
Nylon
Flame class
UL-94-V2
| Partnumber | A |
|---|---|
| 27100803 | 31.8 |
| 27100802 | 28.6 |
| 27100798 | 15.9 |
| 27100804 | 34.9 |
| 27100793 | 6.4 |
| 27100796 | 11.1 |
| 27100801 | 25.4 |
| 27100800 | 22.2 |
| 27100797 | 12.7 |
| 27100792 | 4.8 |
| 27100794 | 7.9 |
| 27100795 | 9.5 |
| 27100799 | 19.1 |
