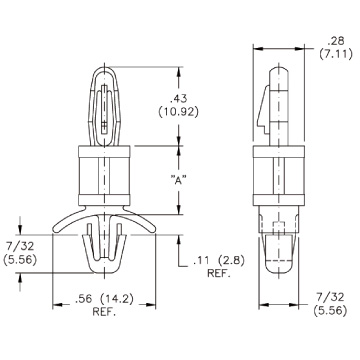

PCB spacer, 1 shoulder
Top hole
4mm
Top panel thickness
2.36mm
Bottom hole
4.75mm
Bottom panel thickness
0.79 to 1.98mm
Material
Nylon
Flame class
UL-94-V2
| Partnumber | A |
|---|---|
| 27100624 | 28.6 |
| 27100615 | 4.8 |
| 27100616 | 6.4 |
| 27100605 | 9.5 |
| 27100623 | 25.4 |
| 27100630 | 31.7 |
| 27100628 | 15.9 |
| 27100617 | 7.9 |
| 27100626 | 34.9 |
| 27100629 | 19.1 |
| 27100627 | 11.1 |
| 27100622 | 22.2 |
| 27100619 | 12.7 |
