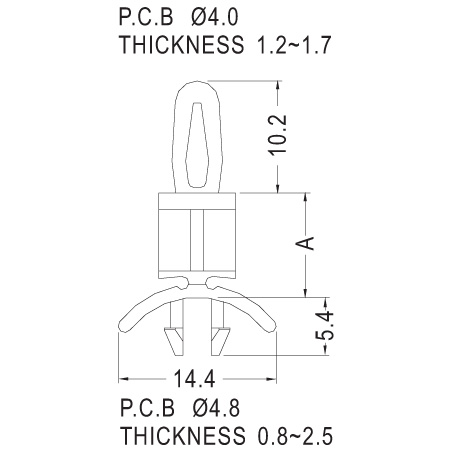

PCB spacer, 1 shoulder
Top hole
4mm
Top panel thickness
1.2 to 1.7mm
Bottom hole
3mm
Bottom panel thickness
0.8 to 2mm
Material
Nylon
Flame class
UL-94-V2
| Partnumber | A |
|---|---|
| 28001890 | 4.8 |
| 28001896 | 22.2 |
| 28001891 | 6.4 |
| 28001895 | 19.1 |
| 28001893 | 12.7 |
| 28001892 | 9.5 |
| 28001894 | 15.9 |
