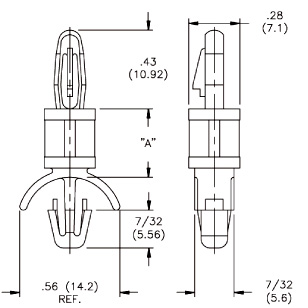

PCB spacer, 1 shoulder
Top hole
4mm
Top panel thickness
2.36mm
Bottom hole
4.75mm
Bottom panel thickness
1.98 to 3.56mm
Material
Nylon
Flame class
UL-94-V2
| Partnumber | A |
|---|---|
| 27100743 | 4.8 |
| 27100751 | 22.2 |
| 27100755 | 34.9 |
| 27100752 | 25.4 |
| 27100754 | 31.7 |
| 27100747 | 11.1 |
| 27100748 | 12.7 |
| 27100753 | 26.8 |
| 27100744 | 6.4 |
| 27100749 | 15.9 |
| 27100745 | 7.9 |
| 27100750 | 19.1 |
| 27100746 | 9.5 |
