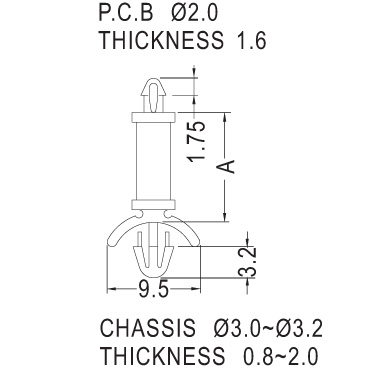

PCB spacer, 1 shoulder
Top hole
2mm
Top panel thickness
1.6mm
Bottom hole
3 to 3.2mm
Bottom panel thickness
0.8 to 2mm
Material
Nylon
Flame class
UL-94-V2
| Partnumber | A |
|---|---|
| 28001663 | 14.3 |
| 28001658 | 6.4 |
| 28001661 | 11.1 |
| 28001664 | 15.9 |
| 28001656 | 3.2 |
| 28001659 | 7.9 |
| 28001662 | 12.7 |
| 28001657 | 4.8 |
| 28001660 | 9.5 |
