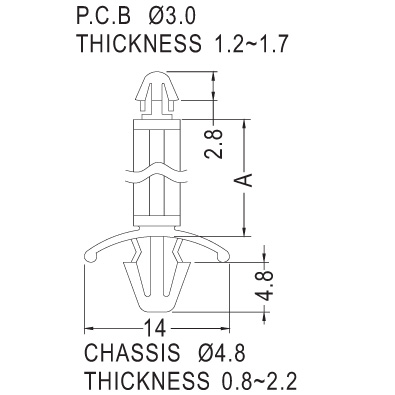

PCB spacer, 1 shoulder
Top hole
3mm
Top panel thickness
1.2 to 1.7mm
Bottom hole
4.8mm
Bottom panel thickness
0.8 to 2mm
Material
Nylon
Flame class
UL-94-V2
| Partnumber | A |
|---|---|
| 28001730 | 10 |
| 28001726 | 3.2 |
| 28001728 | 6.3 |
| 28001731 | 12 |
| 28001732 | 14 |
| 28001733 | 16 |
| 28001729 | 8 |
| 28001735 | 25 |
| 28001734 | 18 |
| 28001727 | 4.8 |
