PCB edge spacer
Material
Nylon
Flame class
UL-94-V2

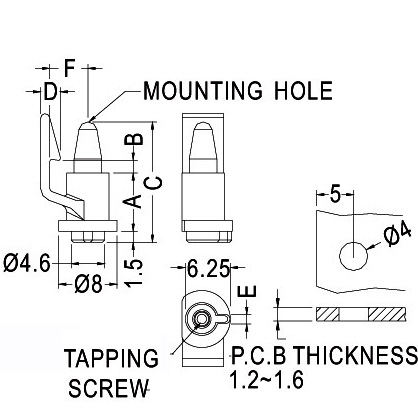

| Partnumber | A | B | C | D | F | E |
|---|---|---|---|---|---|---|
| mm | ||||||
| 28003816 | 10 | 2.24 | 19 | 2.85 | 5.25 | 1.4 |
| 28003814 | 6.3 | 1.73 | 14.8 | 2.7 | 5.25 | 1.3 |
| 28003818 | 18.55 | 1.9 | 27.05 | 3.8 | 5.5 | 1.3 |
| 28003815 | 8 | 1.7 | 16.5 | 2.7 | 5.25 | 1.3 |
| 28003817 | 12 | 1.75 | 19.8 | 2.85 | 5.25 | 1.4 |
