Plastic hexagonal spacer, internal / external thread, nylon
Type
Hexagonal, int / ext. thread
Colour
Natural
Material
Nylon
Flame class
UL-94-V2

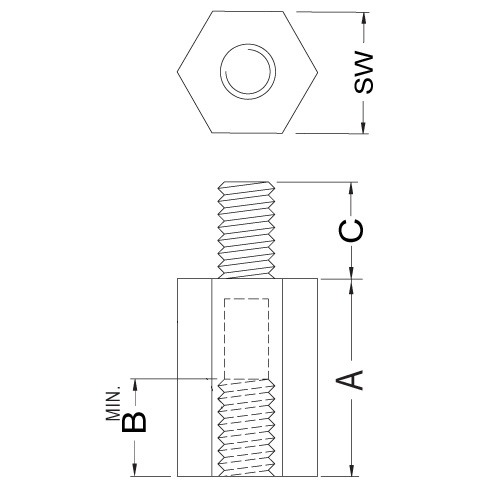

| Partnumber | SW | Length (L) | A | B | C | Thread |
|---|---|---|---|---|---|---|
| mm | ||||||
| 28005948 | 5.5 | 10.5 | 10.5 | 6 | 6 | M 3x0.5 |
| 28005899 | 5.5 | 10.8 | 10.8 | 6 | 3.5 | M 3x0.5 |
| 28005895 | 5.5 | 5 | 5 | 3 | 3.5 | M 3x0.5 |
| 28005958 | 5.5 | 18 | 18 | 6 | 6 | M 3x0.5 |
| 28005922 | 7 | 25 | 25 | 6 | 6.5 | M 4x0.7 |
| 28005960 | 5.5 | 19 | 19 | 6 | 6 | M 3x0.5 |
| 28005898 | 5.5 | 9 | 9 | 6 | 4 | M 3x0.5 |
| 28005900 | 5.5 | 11.2 | 11.2 | 6 | 3.5 | M 3x0.5 |
| 28005915 | 7 | 6 | 6 | 4 | 6.5 | M 4x0.7 |
| 28005875 | 5 | 10 | 10 | 8 | 8 | M 3x0.5 |
| 28005926 | 7 | 45.5 | 45.5 | 6 | 6.5 | M 4x0.7 |
| 28005880 | 5 | 25 | 25 | 8 | 8 | M 3x0.5 |
| 28005957 | 5.5 | 17 | 17 | 6 | 6 | M 3x0.5 |
| 28005916 | 7 | 8 | 8 | 6 | 6.5 | M 4x0.7 |
| 28005947 | 5.5 | 10 | 10 | 6 | 6 | M 3x0.5 |
| 28005969 | 5.5 | 35 | 35 | 6 | 6 | M 3x0.5 |
| 28005946 | 5.5 | 9 | 9 | 6 | 6 | M 3x0.5 |
| 28005924 | 7 | 35 | 35 | 6 | 6.5 | M 4x0.7 |
| 28005876 | 5 | 12 | 12 | 8 | 8 | M 3x0.5 |
| 28005856 | 4 | 15 | 15 | 5 | M 2x0.4 | TP2-15 |
| 5 | 20 | 20 | 8 | 8 | M 3x0.5 | TPS-20 |
| 5.5 | 6 | 6 | 4 | 6 | M 3x0.5 | TP-6 |
| 5.5 | 18.5 | 18.5 | 6 | 6 | M 3x0.5 | TP-18.5 |
| 4 | 5 | 5 | 5 | M 2x0.4 | TP2-5 | |
| 28005919 | 14 | 14 | 6 | 6.5 | M 4x0.7 | TP4-14 |
| 28005949 | 11 | 11 | 6 | 6 | M 3x0.5 | TP-11 |
| 28005877 | 15 | 15 | 8 | 8 | M 3x0.5 | TPS-15 |
| 28005854 | 8 | 8 | 5 | M 2x0.4 | TP2-8 | |
| 28005968 | 5.5 | 33 | 6 | 6 | M 3x0.5 | TP-33 |
| 28005917 | 7 | 10 | 6 | 6.5 | M 4x0.7 | TP4-10 |
| 28005896 | 5.5 | 5 | 3 | 5 | M 3x0.5 | TP-5SM |
| 28005951 | 5.5 | 12.7 | 6 | 6 | M 3x0.5 | TP-12 |
| 28005950 | 5.5 | 12 | 6 | 6 | M 3x0.5 | TP-12A |
| 28005858 | 4 | 8 | 5 | M 2x0.4 | TP2-8S | |
| 28005961 | 5.5 | 20 | 6 | 6 | M 3x0.5 | TP-20 |
| 28005964 | 5.5 | 24.5 | 6 | 6 | M 3x0.5 | TP-24.5 |
| 28005945 | 5.5 | 8 | 6 | 6 | M 3x0.5 | TP-8 |
| 28005944 | 5.5 | 7.5 | 5 | 6 | M 3x0.5 | TP-7.5 |
| 28005897 | 5.5 | 7 | 5 | 4 | M 3x0.5 | TP-7-4 |
| 28005943 | 5.5 | 7 | 5 | 6 | M 3x0.5 | TP-7 |
| 28005860 | 4 | 15 | 5 | M 2x0.4 | TP2-15S | |
| 28005923 | 7 | 30 | 30 | 6.5 | M 4x0.7 | TP4-30 |
| 28005952 | 5.5 | 13 | 13 | 6 | M 3x0.5 | TP-13 |
| 28005962 | 5.5 | 21 | 21 | 6 | M 3x0.5 | TP-21 |
| 28005966 | 5.5 | 27 | 27 | 6 | M 3x0.5 | TP-27 |
| 28005953 | 5.5 | 14 | 14 | 6 | M 3x0.5 | TP-14 |
| 28005965 | 5.5 | 25 | 25 | 6 | M 3x0.5 | TP-25 |
| 28005921 | 7 | 20 | 20 | 6.5 | M 4x0.7 | TP4-20 |
| 28005918 | 7 | 12 | 12 | 6.5 | M 4x0.7 | TP4-12 |
| 28005925 | 7 | 40 | 40 | 6.5 | M 4x0.7 | TP4-40 |
| 28005855 | 4 | 10 | 10 | M 2x0.4 | TP2-10 | |
| 28005956 | 5.5 | 16.5 | 16.5 | 6 | M 3x0.5 | TP-16.5 |
| 28005878 | 5 | 18 | 18 | 8 | M 3x0.5 | TPS-18 |
| 28005941 | 5.5 | 5 | 5 | 3 | M 3x0.5 | TP-5 |
| 28005954 | 5.5 | 15 | 15 | 6 | M 3x0.5 | TP-15 |
| 28005963 | 5.5 | 22 | 22 | 6 | M 3x0.5 | TP-22 |
| 28005920 | 7 | 16 | 16 | 6 | M 4x0.7 | TP4-16 |
| 28005857 | 4 | 5 | 5 | 5 | TP2-5S | |
| 28005955 | 5.5 | 16 | 16 | 6 | 6 | TP-16 |
| 28005967 | 5.5 | 30 | 30 | 6 | 6 | TP-30 |
| 28005859 | 4 | 10 | 10 | 5 | M 2x0.4 |
