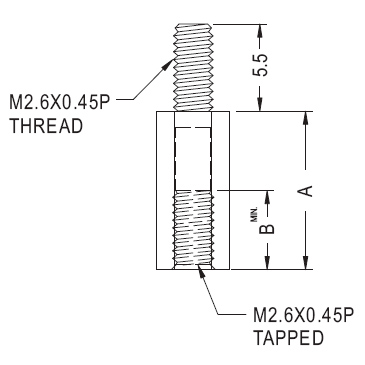

Plastic hexagonal spacer, internal / external thread, nylon
Type
Hexagonal, int / ext. thread
Colour
Natural
Material
Nylon
Flame class
UL-94-V0 UL-94-V2
| Partnumber | A | B | Thread |
|---|---|---|---|
| 28090080 | 13 | 5 | M2.6X0.45P |
| 28090071 | 4 | 2.5 | M2.6X0.45P |
| 28090074 | 7 | 5 | M2.6X0.45P |
| 28090078 | 11 | 5 | M2.6X0.45P |
| 28090092 | 25 | 5 | M2.6X0.45P |
| 28090090 | 23 | 5 | M2.6X0.45P |
| 28090088 | 21 | 5 | M2.6X0.45P |
| 28090084 | 17 | 5 | M2.6X0.45P |
| 28090081 | 14 | 5 | M2.6X0.45P |
| 28090093 | 26 | 5 | M2.6X0.45P |
| 28090077 | 10 | 5 | M2.6X0.45P |
| 28090073 | 6 | 4 | M2.6X0.45P |
| 28090079 | 12 | 5 | M2.6X0.45P |
| 28090072 | 5 | 3 | M2.6X0.45P |
| 28090083 | 16 | 5 | M2.6X0.45P |
| 28090095 | 28 | 5 | M2.6X0.45P |
| 28090087 | 20 | 5 | M2.6X0.45P |
| 28090094 | 27 | 5 | M2.6X0.45P |
| 28090076 | 9 | 5 | M2.6X0.45P |
| 28090085 | 18 | 5 | M2.6X0.45P |
| 28090089 | 22 | 5 | M2.6X0.45P |
| 28090091 | 24 | 5 | M2.6X0.45P |
| 28090082 | 15 | 5 | M2.6X0.45P |
| 28090075 | 8 | 5 | M2.6X0.45P |
| 28090086 | 19 | 5 | M2.6X0.45P |
