Plastic hexagonal spacer with internal thread, nylon
Type
Hexagonal, internal thread
Colour
Natural
Material
Nylon
Flame class
UL-94-V2

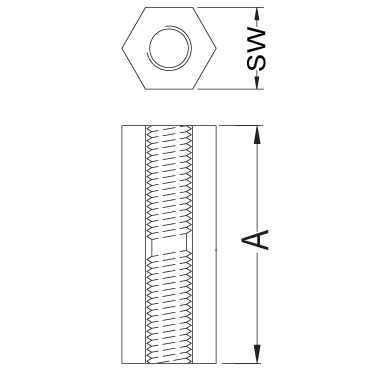

| Partnumber | SW | Length (L) | A | Thread |
|---|---|---|---|---|
| 28005700 | 5.5 | 27 | 27 | M 3x0.5 |
| 28005749 | 7 | 26 | 26 | M 4x0.7 |
| 28005693 | 5.5 | 17 | 17 | M 3x0.5 |
| 28005694 | 5.5 | 18 | 18 | M 3x0.5 |
| 28005748 | 7 | 25 | 25 | M 4x0.7 |
| 28005691 | 5.5 | 15 | 15 | M 3x0.5 |
| 28005630 | 5 | 15 | 15 | M 3x0.5 |
| 28005703 | 5.5 | 38 | 38 | M 3x0.5 |
| 28005705 | 5.5 | 42 | 42 | M 3x0.5 |
| 28005746 | 7 | 16 | 16 | M 4x0.7 |
| 28005697 | 5.5 | 22 | 22 | M 3x0.5 |
| 28005631 | 5 | 18 | 18 | M 3x0.5 |
| 28005699 | 5.5 | 25 | 25 | M 3x0.5 |
| 28005747 | 7 | 20 | 20 | M 4x0.7 |
| 28005707 | 5.5 | 49 | 49 | M 3x0.5 |
| 28005673 | 6 | 34 | 34 | M 3x0.5 |
| 28005704 | 5.5 | 40 | 40 | M 3x0.5 |
| 28005701 | 5.5 | 30 | 30 | M 3x0.5 |
| 28005708 | 5.5 | 52 | 52 | M 3x0.5 |
| 28005695 | 5.5 | 19 | 19 | M 3x0.5 |
| 28005751 | 7 | 35 | 35 | M 4x0.7 |
| 28005688 | 5.5 | 12.7 | 12.7 | M 3x0.5 |
| 28005692 | 5.5 | 16 | 16 | M 3x0.5 |
| 28005706 | 5.5 | 45 | 45 | M 3x0.5 |
| 28005633 | 5 | 25 | 25 | M 3x0.5 |
| 28005698 | 5.5 | 24 | 24 | M 3x0.5 |
| 28005753 | 7 | 45.5 | 45.5 | M 4x0.7 |
| 28005689 | 5.5 | 13.5 | 13.5 | M 3x0.5 |
| 28005632 | 5 | 20 | 20 | M 3x0.5 |
| 28005750 | 7 | 30 | 30 | M 4x0.7 |
| 28005752 | 7 | 40 | 40 | M 4x0.7 |
| 28005690 | 5.5 | 14 | 14 | M 3x0.5 |
| 28005745 | 7 | 14 | 14 | M 4x0.7 |
| 28005702 | 5.5 | 32 | 32 | M 3x0.5 |
| 28005696 | 5.5 | 20 | 20 | M 3x0.5 |
