Plastic PA spacers hexagonal with external thread
Type
Hexagonal, external thread
Colour
Black
Material
Polyamide

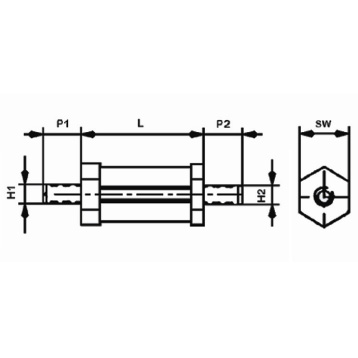

| Partnumber | SW | Length (L) | P1 | P2 | D |
|---|---|---|---|---|---|
| 27203403 | 6 | 12 | 6 | 6 | M 3 |
| 27203409 | 6 | 35 | 6 | 6 | M 3 |
| 27203411 | 8 | 8 | 6.4 | 6.4 | M 4 |
| 27203421 | 6 | 8 | 6.4 | 6 | M 3 / M 4 |
| 27203402 | 6 | 10 | 6 | 6 | M 3 |
| 27203426 | 6 | 20 | 6.4 | 6 | M 3 / M 4 |
| 27203405 | 6 | 18 | 6 | 6 | M 3 |
| 27203418 | 8 | 30 | 6.4 | 6.4 | M 4 |
| 27203401 | 6 | 8 | 6 | 6 | M 3 |
| 27203417 | 8 | 25 | 6.4 | 6.4 | M 4 |
| 27203429 | 6 | 35 | 6.4 | 6 | M 3 / M 4 |
| 27203412 | 8 | 10 | 6.4 | 6.4 | M 4 |
| 27203406 | 6 | 20 | 6 | 6 | M 3 |
| 27203415 | 8 | 18 | 6.4 | 6.4 | M 4 |
| 27203407 | 6 | 25 | 6 | 6 | M 3 |
| 27203427 | 6 | 25 | 6.4 | 6 | M 3 / M 4 |
| 27203420 | 6 | 5 | 6.4 | 6 | M 3 / M 4 |
| 27203408 | 6 | 30 | 6 | 6 | M 3 |
| 27203416 | 8 | 20 | 6.4 | 6.4 | M 4 |
| 27203428 | 6 | 30 | 6.4 | 6 | M 3 / M 4 |
| 27203419 | 8 | 35 | 6.4 | 6.4 | M 4 |
| 27203414 | 8 | 15 | 6.4 | 6.4 | M 4 |
| 27203425 | 6 | 18 | 6.4 | 6 | M 3 / M 4 |
| 27203400 | 6 | 5 | 6 | 6 | M 3 |
| 27203410 | 8 | 5 | 6.4 | 6.4 | M 4 |
| 27203424 | 6 | 15 | 6.4 | 6 | M 3 / M 4 |
| 27203423 | 6 | 12 | 6.4 | 6 | M 3 / M 4 |
| 27203413 | 8 | 12 | 6.4 | 6.4 | M 4 |
| 27203422 | 6 | 10 | 6.4 | 6 | M 3 / M 4 |
| 27203404 | 6 | 15 | 6 | 6 | M 3 |
