Resistor washer
Application
Transistor resistor & crystal washers
Material
Ceramic
Colour
White

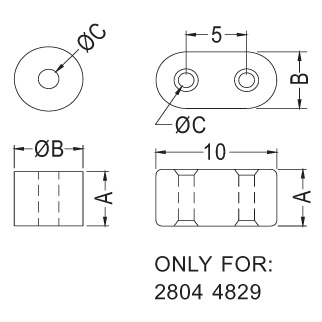

| Partnumber | A | B | C |
|---|---|---|---|
| mm | |||
| 28044828 | 5 | 5 | 1.3 |
| 28044831 | 15.4 | 4.1 | 1.9 |
| 28044824 | 9 | 3.8 | 1 |
| 28044830 | 3.1 | 2.5 | 1.1 |
| 28044826 | 4.5 | 4.5 | 1.8 |
| 28044829 | 6.9 | 2.6 | 0.9 |
| 28044825 | 3 | 4.5 | 1.8 |
| 28044827 | 9 | 4.5 | 1.8 |
| 28044823 | 4.5 | 3.8 | 1 |
