Capacitor washer
Application
Capacitor cover & washers
Note
For all dimensions see pdf
Material
Nylon
Flame class
UL-94-V2
Colour
Natural

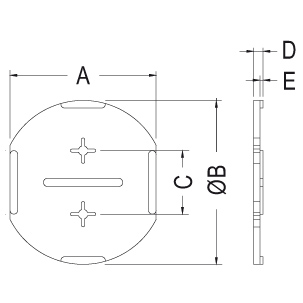

| Partnumber | A | B | C | D | E | For all dimensions |
|---|---|---|---|---|---|---|
| mm | ||||||
| 28082837 | 31.8 | 35.3 | 10 | 2 | 1 | CW-35L |
| 20 | 22.2 | 10 | 1 | 0.5 | CW-22 | |
| 28082836 | 35.3 | 10 | 1.5 | 0.5 | CW-35 | |
| 28082830 | 14.6 | 7.5 | 1.5 | 1 | CW-16 | |
| 28082829 | 10.5 | 10.5 | 1 | see PDF | CW-10S | |
| 28082834 | 23 | 25.7 | 10 | see PDF | CW-25S | |
| 28082831 | 16.4 | 18.2 | 7.5 | 1.5 | CW-18 | |
| 28082835 | 27.2 | 30.3 | 10 | 1 | 0.5 | |
| 28082833 | 23 | 25.7 | 10 | 1 | 0.5 | CW-25 |
| 19.8 | 22.8 | 10.4 | 2.7 | 0.9 | see PDF | CW-1 |
| see PDF | CW-12 |
