Round LED spacer
Application
LED spacers
Material
Nylon
Colour
Black Natural
Flame class
UL-94-V2

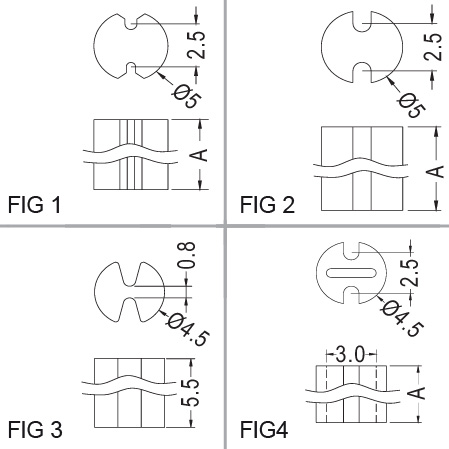

| Partnumber | Figure | A |
|---|---|---|
| 28011055 | 4 | 4.5 |
| 28011018 | 2 | 22.7 |
| 28011076 | 4 | 15 |
| 28011051 | 4 | 2.5 |
| 28011078 | 4 | 18 |
| 28011013 | 2 | 16.1 |
| 28011064 | 4 | 9 |
| 28011077 | 4 | 15.5 |
| 28011074 | 4 | 14 |
| 28011052 | 4 | 3 |
| 28011056 | 4 | 5 |
| 28011070 | 4 | 12 |
| 28011017 | 2 | 22 |
| 28011016 | 2 | 20.2 |
| 28011075 | 4 | 14.5 |
| 28011053 | 4 | 3.5 |
| 28011071 | 4 | 12.5 |
| 28011065 | 4 | 9.5 |
| 28011059 | 4 | 6.5 |
| 28010995 | 1 | 5 |
| 28011069 | 4 | 11.5 |
| 28011049 | 4 | 1.5 |
| 28011062 | 4 | 8 |
| 28011066 | 4 | 10 |
| 28011057 | 4 | 5.5 |
| 28011015 | 2 | 17.5 |
| 28011058 | 4 | 6 |
| 28011019 | 2 | 23.5 |
| 28011067 | 4 | 10.5 |
| 28011072 | 4 | 13 |
| 28011060 | 4 | 7 |
| 28010997 | 1 | 11 |
| 28011061 | 4 | 7.5 |
| 28011014 | 2 | 16.4 |
| 28011063 | 4 | 8.5 |
| 28011034 | 3 | LEDV-5.5 |
| 4 | 11 | LEDH-11 |
| 1 | 9 | LEDT-9 |
| 1 | 14.5 | LEDT-14.5 |
| 4 | 4 | LEDH-4 |
| 4 | 2 | LEDH-2 |
| 4 | 13.5 | LEDH-13.5 |
