Light pipe - SMT LED (02)
Application
Light pipes
Material
PC
Colour
Clear
Flame class
UL-94-V2

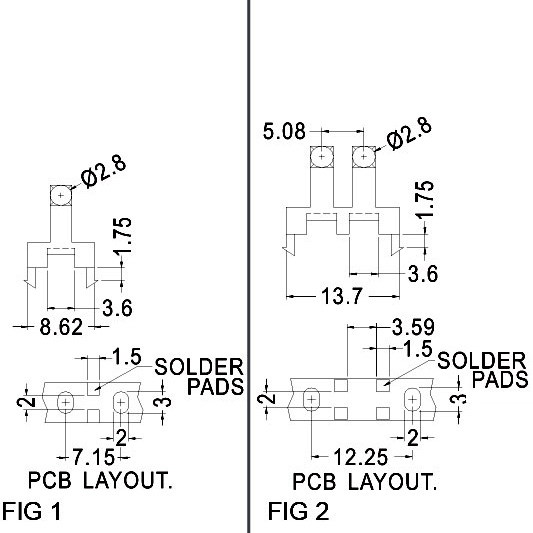

| Partnumber | Figure | A | B | C |
|---|---|---|---|---|
| mm | ||||
| 28021150 | 1 | 15 | 16 | 14 |
| 28021174 | 2 | 15 | 22 | 20 |
| 28021144 | 1 | 5 | 22 | 20 |
| 28021148 | 1 | 10 | 27 | 25 |
| 28021170 | 2 | 10 | 19 | 17 |
| 28021143 | 1 | 5 | 19 | 7 |
| 28021142 | 1 | 5 | 16 | 14 |
| 28021145 | 1 | 10 | 16 | 14 |
| 28021167 | 2 | 5 | 19 | 17 |
| 28021147 | 1 | 10 | 22 | 20 |
| 28021172 | 2 | 15 | 16 | 14 |
| 28021146 | 1 | 10 | 19 | 17 |
| 28021171 | 2 | 10 | 22 | 20 |
| 28021166 | 2 | 5 | 16 | 14 |
| 28021169 | 2 | 10 | 16 | 14 |
| 28021173 | 2 | 15 | 19 | 17 |
| 28021151 | 1 | 15 | 22 | 20 |
| 28021149 | 1 | 15 | 19 | 17 |
| 28021168 | 2 | 5 | 22 | 20 |
